HDMI Video Cards
GALAX RTX 3080 10GB 320BIT - 38NWM3MD99RG
GALAX GeForce RTX 3080 SG (1-Click OC) LHR
10GB GDDR6X 320-bit DP x 3/HDMI
The all-new GALAX Serious Gaming Edition has equipped with 1-Clip Booster
Which can be installed at the back plate and it is the precision and quality that win
When the fan is at the back the PCB is in fact much shorter than the cooler
And the key is to allow air to flow as easy as they could
Therefore GALAX built larger holes that allows air to flow through to fulfil the first requirement
Apart from that, the advantage of adding a fan on the back plate
The 1-Clip booster fan design sucks the air out instead of blowing the air in
Creating a technically-correct push-pull cooling effects
When this additional fan is used, it can achieve better performance as if a GPU running with a normal back plate
DESCRIPTION
This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.)
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
Microsoft DirectX Ultimate
GDDR6X Graphics Memory
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA G-SYNC
NVIDIA GPU Boost
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
DisplayPort 1.4a, HDMI 2.1
HDCP 2.3
VR Ready
All photos, specifications, contents are used for reference only and are subject to change without notice
Actual products in different countries varies and are best to consult your local distributor / importer for confirmation
SPECIFICATION
GPU Engine Specs:
CUDA Cores 8704
Boost Clock (MHz) 1710
1-Click OC Clock (MHz) 1725 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 19 Gbps
Standard Memory Config 10GB
Memory Interface Width 320-bit GDDR6X
Memory Bandwidth (GB/sec) 720
Feature Support:
PCI-E 4.0
Windows 10 64-bit, Linux 64-bit
Fan Feature:
3 x 92mm
Fan stop @ Idle (All Fan)
Display Support:
DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
Dimensions(with Bracket): 329 x 130 x 61mm
Dimensions(without Bracket): 317 x 113 x 61mm
REQUIREMENT
PCI Express-compliant Motherboard with one dual-width x 16 Graphics slot
System Space for 3-slot Card required
2 x PCIe 8-pin supplementary power connectors
Minimum 750W or greater System Power Supply
32GB System Memory recommended)
Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
Clip on Fan is 22mm x 98mm in Height and Length and is 192mm away measured from the Graphics Card bracket
Please check your Motherboard for compatibility before installation
RTX 3080 10GB 320BIT
GALAX RTX 3060 TI 8GB 256BIT - 36ISL6MD1VQW
GALAX GeForce RTX 3060 Ti (1-Click OC) LHR
8GB GDDR6 256-bit DP x 3/HDMI
Equipped with twin 90 mm fans and special practical design for heat dissipation
The exclusive carbon texture and outlook bring out the ultimate coolness of the Card
DESCRIPTION
This GeForce RTX 3060 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
Microsoft DirectX Ultimate
GDDR6 Graphics Memory
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA G-SYNC
NVIDIA GPU Boost
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
DisplayPort 1.4a, HDMI 2.1
HDCP 2.3
VR Ready
All photos, specifications, contents are used for reference only and are subject to change without notice
Actual products in different countries varies and are best to consult your local distributor / importer for confirmation
SPECIFICATION
GPU Engine Specs:
CUDA Cores 4864
Boost Clock (MHz) 1665
1-Click OC Clock (MHz) 1680 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 14 Gbps
Standard Memory Config 8GB
Memory Interface Width 256-bit GDDR6
Memory Bandwidth (GB/sec) 448
Feature Support:
PCI-E 4.0
Windows 10 64-bit, Linux 64-bit
Fan Feature:
2 x 90mm
Fan stop @ Idle (All Fan)
Display Support:
DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
Dimensions(with Bracket): 256.5 x 131.5 x 41.5mm
Dimensions(without Bracket): 242.5 x 118.65 x 38.6mm
REQUIREMENT
PCI Express-compliant Motherboard with one dual-width x 16 Graphics slot
System Space for 2-slot card required
1 x PCIe 8-pin supplementary power connectors
Minimum 550W or greater System Power Supply
32GB System Memory recommended)
Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
RTX 3060 TI 8GB 256BIT
GALAX RTX 3060 12GB 192BIT - 36NOL7MD1VOC
GALAX GeForce RTX 3060 (1-Click OC)
12GB GDDR6 192-bit DP x 3/HDMI
Like all GeForce RTX Series GPUs, the GeForce RTX 3060 supports the trifecta of GeForce Gaming innovations:
NVIDIA DLSS, NVIDIA Reflex and NVIDIA Broadcast, which accelerate performance and enhance image quality
Together with real-time ray tracing, these technologies are the foundation of the GeForce Gaming platform
Which brings unparalleled performance and features to Games and Gamers everywhere
Equipped with twin 90 mm fans and special practical design for heat dissipation
The exclusive carbon texture and outlook bring out the ultimate coolness of the Card
DESCRIPTION
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
Microsoft DirectX Ultimate
GDDR6 Graphics Memory
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA G-SYNC
NVIDIA GPU Boost
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
DisplayPort 1.4a, HDMI 2.1
HDCP 2.3
VR Ready
All photos, specifications, contents are used for reference only and are subject to change without notice
Actual products in different countries varies and are best to consult your local distributor / importer for confirmation
SPECIFICATION
GPU Engine Specs:
CUDA Cores 3584
Boost Clock (MHz) 1777
1-Click OC Clock (MHz) 1792 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 15 Gbps
Standard Memory Config 12GB
Memory Interface Width 192-bit GDDR6
Memory Bandwidth (GB/sec) 360
Feature Support:
PCI-E 4.0
Windows 10 64-bit, Linux 64-bit
Fan Feature:
2 x 90mm
Fan stop @ Idle (All Fan)
Display Support:
DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
Dimensions(with Bracket): 258 x 126 x 41.5mm
Dimensions(without Bracket): 245 x 112 x 41.5mm
REQUIREMENT
PCI Express-compliant Motherboard with one dual-width x 16 Graphics slot
System Space for 2-slot Card required
1 x PCIe 8-pin supplementary power connectors
Minimum 550W or greater System Power Supply
32GB System Memory recommended)
Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
RTX 3060 12GB 192BIT
AXLE RX580 PCI-E 8G DDR5 256BIT DVI/HDMI/DP W - RX580
AMD Radeon RX 580
PRODUCT SPECIFICATION
AMD CUDA Cores: 2048
Base/ Boost Clock: 1286MHz
Memory Speed: 7Gbps
Memory Config.: 8GB GDDR5
Memory Interface: 256 bit
Memory Bandwidth: 224.0GB/s
Outputs:
3 x DisplayPort
1 x HDMI
1 x DVI-D
Cooling Design: Heatsink with Twin Cooler
KEY FEATURE
AMD Radeon VR Ready Premium
AMD Radeon Software
AMD Free Sync Technology
AMD LiquidVR Technology
AMD Radeon Relive
AMD Radeon Chill
DirectX 12 Technology, The Vulkan API, OpenGL 4.5
Unified Video Decoder(UVD)
MINIMUM SYSTEM REQUIREMENTS
PCI Express-compliant motherboard with one dual-width x16 graphics slot
400W or greater system power supply2
8 GB system memory (16GB recommended)
Windows 10 64-Bit Edition, Windows 7 -64-Bit Edition
Windows 7-32 -Bit Edition, Ubuntu X86 64-Bit
Linux x86_64
RX580 PCI-E 8G DDR5 256BIT DVI/HDMI/DP W
GALAX GTX 1660 1CL OC 6GB 192BIT - 60SRL7DSY91S
GALAX GeForce GTX 1660 Super (1-Click OC)
6GB GDDR6 192-bit DP/HDMI/DVI-D
With Dual 90 mm Fans and Fans stop to assure the temperature is maintained at a reasonable level
To prevent the stress on PCB, the 1660 Super series is furnished with back plates that befit for both colors
DESCRIPTION
NVIDIA Turing
NVIDIA GeForce Experience
NVIDIA Ansel
NVIDIA G-SYNC Compatible
NVIDIA Highlights
Game Ready Drivers
Microsoft DirectX 12 API, Vulkan API, OpenGL 4.6
DisplayPort 1.4, HDMI 2.0b, DVI-D
HDCP 2.2
NVIDIA GPU Boost
VR Ready
All photos, specifications, contents are used for reference only and are subject to change without notice
Actual products in different countries varies and are best to consult your local distributor / importer for confirmation
SPECIFICATION
GPU Engine Specs:
CUDA Cores 1408
Boost Clock (MHz) 1800
1-Click OC Clock (MHz) 1815 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 14 Gbps
Memory Interface Width 192-bit GDDR6
Memory Bandwidth (GB/sec) 336
Display Support:
Multi Monitor 3 Displays
Standard Display Connectors DP 1.4, HDMI 2.0b, DVI-D
Standard Graphics Card Dimensions:
Dimensions(with Bracket) 228 x 131.5 x 41.5 mm
Dimensions(without Bracket) 214 x 118.65 x 38.6 mm
Fan stop @ Idle (All Fan)
Power Specs:
Maximum Graphics Card Power (W) 125W
Minimum System Power Requirement (W) 450W
Supplementary Power Connectors 8-pin
REQUIREMENT
PCI Express-compliant Motherboard with one Dual-width x 16 Graphics Slot
1 x 8-Pin PCI Express supplementary Power Connectors
Minimum 450W or greater System Power Supply
350MB of available Hard-Disk space
4GB System Memory (6GB or higher recommended)
Microsoft Windows 10, Windows 8 & 8.1, Windows 7 64-bit
CD-ROM/DVD-ROM Drive or Internet Connection
Windows XP no longer Supported
GTX 1660 1CL OC 6GB 192BIT

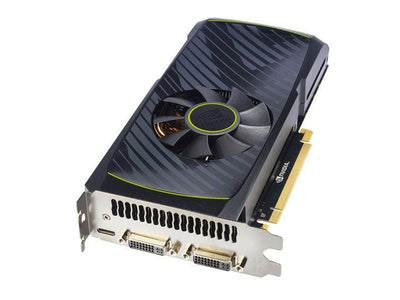

GALAXY NVIDIA BLUE GTX560 1GB RAM DDR5 - 56NGH6HS41XZ-GX
NVIDIA GeForce GTX 560Ti 1GB GDDR5 PCI Express 2.0 Graphics Card
Features:
Support Microsoft Windows XP / Vista / 7 Support nVidia PhysX Technology Support
Max. Resolution: 2560 x 1600
Connectors: Dual DVI; Mini HDMI
Thermal: Fansink
Memory Clock: 4104 MHz
Memory Interface: 256-bit Bus: PCI-Express 2.0 x16
Chipset: GeForce GTX560 Ti
Engine Clock: 850 MHz
Video Memory: 1GB DDR5
RAMDAC: 400 MHz
Steam Processor: 384
Memory Bandwidth: 131.3 GB/s
Chipset: GeForce GTX560 Ti
Engine Clock: 850 MHz
Video Memory: 1GB DDR5
Memory Clock: 4104 MHz
Memory Interface: 256-bit
Bus: PCI-Express 2.0 x16
RAMDAC: 400 MHz
Steam Processor: 384
Memory Bandwidth: 131.3 GB/s
Max. Resolution: 2560 x 1600
Connectors: Dual DVI; Mini HDMI
Thermal: Fansink
Support Microsoft Windows XP / Vista / 7 Support nVidia PhysX Technology Support
Support HDCP - High-bandwidth Digital Content Protection
Support Microsoft DirectX 11 and OpenGL 4.1 500W
nVidia CUDA Technology
Support nVidia PureVideo HD Technology
Support nVidia 2-Way SLI Technology
Support nVidia 3D Vision Technology
Greater power supply with a minimum of 30 amps on the +12 Volt rail
NVIDIA BLUE GTX560 1GB RAM DDR5
HIGHTECH HD 4890 ATI RADEON 1GB RAM DDR5
AXLE RX550 PCI-E 4G DDR5 128BIT DVI/HDMI/DP W - RX550
AMD Radeon RX 550
PRODUCT SPECIFICATION
AMD CUDA Cores: 512
Base/ Boost Clock: 1183MHz
Memory Speed: 6Gbps
Memory Config.: 4GB GDDR5
Memory Interface: 128bit
Memory Bandwidth: 96.0GB/s
Outputs:
1 x DisplayPort
1 x HDMI
1 x DVI-D
Cooling Design: Heatsink with Single Cooler
KEY FEATURE
AMD Radeon Software
AMD Radeon Relive
AMD Free Sync Technology
AMD LiquidVR Technology
AMD App Acceleration
AMD Radeon Chill
DirectX 12 Technology, The Vulkan API, OpenGL 4.5
Unified Video Decoder(UVD)
MINIMUM SYSTEM REQUIREMENTS
PCI Express-compliant motherboard with one dual-width x16 graphics slot
400W or greater system power supply2
8 GB system memory (16GB recommended)
Windows 10 64-Bit Edition, Windows 7 -64-Bit Edition
Windows 7-32 -Bit Edition, Ubuntu X86 64-Bit
Linux x86_64
RX550 PCI-E 4G DDR5 128BIT DVI/HDMI/DP W
AXLE G210 PCI-E 1G DDR3 64BITS CRT/DVI/HDMI - AX-G210
G210 PCI-E 1G DDR3 64BITS CRT/DVI/HDMI
PRODUCT SPECIFICATION
Nvidia CUDA Cores : 16
Base Clock/ Shader: 589 / 1402MHz
Memory Speed: 1000MHz
Memory Config.: 1024MB DDR3
Memory Interface: 64 bit
Memory Bandwidth: 8.0 GB/s
Outputs:
1 x VGA
1 x HDMI
1 x DVI
Cooling Design: Heatsink with Single Cooler
KEY FEATURE
Real-Time Ray Tracing
NVIDIA GeForce ExperienceTM
NVIDIA Ansel
NVIDIA Highlights
NVIDIA G-SYNCTM - Compatible
Game Ready Drivers
Microsoft" DirectX 10.1API, OpenGL
HDCP
MINIMUM SYSTEM REQUIREMENTS
PCI Express-compliant motherboard with one dual-width x16 graphics slot
300W or greater system power supply2
8 GB system memory (16GB recommended)
Microsoft Windows 10 32/64-bit
Windows 7 32/64-bit, Linux 64-bit
G210 PCI-E 1G DDR3 64BITS CRT/DVI/HDMI

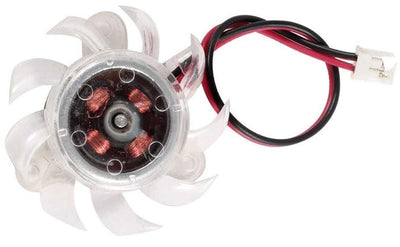

GPU FAN - GFXFAN-G
Graphic VGA Video Card CPU Cooling Fan
Specifications:
Material: Plastic
Color: As shown
Diameter: 3.5cm (± 0.1cm)
Hole distance: 3.5x3.5x3.5cm
Voltage: 12V DC
Electric current: 0.07A
Speed: 4800 ± 10% RPM
Speed Control: PWM
Working life: 30,000 hours (25 , 45 - 85% relative humidity environment)
Ambient temperature: 70
2 pin Power cable length: 11cm
GPU FAN
GALAX GeForce GTX 1660 Super (1-Click OC)
6GB GDDR6 192-bit DP/HDMI/DVI-D
With dual 90 mm fans and fans stop to assure the temperature is maintained at a reasonable level
To prevent the stress on PCB, the 1660 Super series is furnished with back plates that befit for both colors
DESCRIPTION
NVIDIA Turing
NVIDIA GeForce Experience
NVIDIA Ansel
NVIDIA G-SYNC Compatible
NVIDIA Highlights
Game Ready Drivers
Microsoft DirectX 12 API, Vulkan API, OpenGL 4.6
DisplayPort 1.4, HDMI 2.0b, DVI-D
HDCP 2.2
NVIDIA GPU Boost
VR Ready
All photos, specifications, contents are used for reference only and are subject to change without notice
Actual products in different countries varies and are best to consult your local distributor / importer for confirmation
SPECIFICATION
GPU Engine Specs:
CUDA Cores 1408
Boost Clock (MHz) 1800
1-Click OC Clock (MHz) 1815 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 14 Gbps
Memory Interface Width 192-bit GDDR6
Memory Bandwidth (GB/sec) 336
Display Support:
Multi Monitor 3 Displays
Standard Display Connectors DP 1.4, HDMI 2.0b, DVI-D
Standard Graphics Card Dimensions:
Dimensions(with Bracket) 228 x 131.5 x 41.5 mm
Dimensions(without Bracket) 214 x 118.65 x 38.6 mm
Fan stop @ Idle (All Fan)
Power Specs:
Maximum Graphics Card Power (W) 125W
Minimum System Power Requirement (W) 450W
Supplementary Power Connectors 8-pin
REQUIREMENT
PCI Express-compliant Motherboard with one dual-width x 16 Graphics slot
1x 8-pin PCI Express supplementary power connectors
Minimum 450W or greater system power supply
350MB of available hard-disk space
4GB system Memory (6GB or higher recommended)
Microsoft Windows 10, Windows 8 & 8.1, Windows 7 64-bit
CD-ROM/DVD-ROM drive or Internet connection
Windows XP no longer supported
T66D BLACK GF GTX1660 6GB 192BIT
GRAPHICS CARD GT730LP,4GB DDR3,128 BIT W
AXLE NVIDIA GeForce GT730 4024MB 128BIT - AX-GT730
PCB NO: P1071SD3LP
Chip No: GF108-300/400-A1/A2
Technology: 40nm
CUDA Cores : 96
Base Clock: 600MHz
Boost Clock: 700MHz
Memory: Samsung / HYNIX
Memory Clock : 1333 MHz
Memory Size: 4GB
Memory Type: GDDR3
Memory Bus Width : 128-bit
Connectors :VGA, DVI, HDMI
Maximum Digital Resolution: 2048 x 1536
Bus Support: PCI Express 2.0
Fan Type: 1 x Fan
PCB Dimensions: 148 x 69 x 1.5 mm
GT730 4GB DDR3 128BIT VGA/DVI/HDMI
