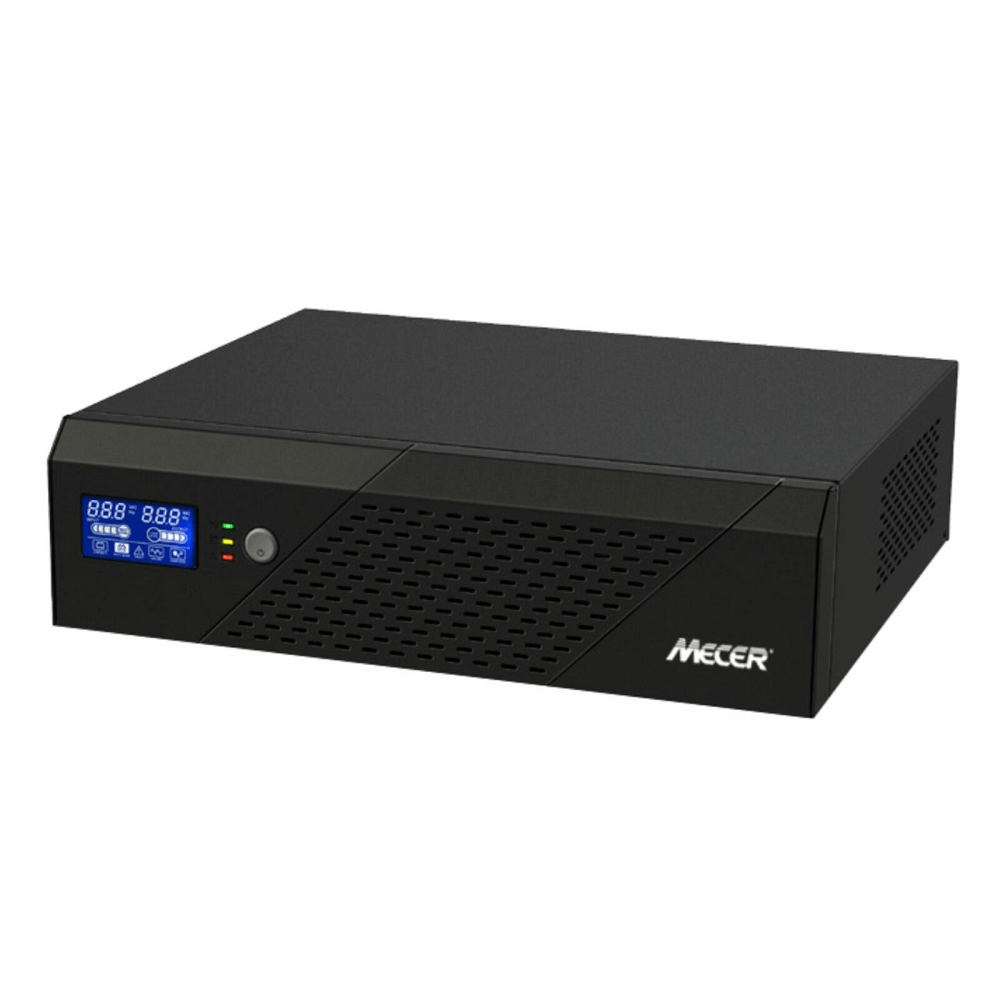

MECER 2400VA 1440W 24V INVERTER (Not Compatible with Lithium Batteries)
MECER INVERTER 2400VA INVERTER NO BATTERY - IVR-2400LBKS
MODEL: IVR-2400LBKS
CAPACITY: 2400VA/ 1440W
Voltage: 230 VAC
Acceptable Voltage Range: 90-280 VAC
Frequency: 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): ± 10%
Efficiency (Peak): 85%
Transfer Time: 20 ms typical
Waveform (Batt. Mode): Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage: 24 VDC
Floating Charge Voltage: 27.4 VDC ±2%
Low Battery Alarm Voltage: 20.4Vdc ±2%
Shutdown Voltage: 19.8Vdc ±2%
Overcharge Protection: 30.0Vdc ±2%
Maximum Charge Current: 10 A or 20 A (Selectable)
SOLAR CHARGER (Optional)
Maximum PV Array Open Circuit Voltage: 60 VDC
Operating Voltage Range: 30-32 VDC
Maximum Solar Charge Current: 50 A
PROTECTION
Full Protection: Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm): 300 x 360 x 88
Net Weight (kgs): 4.8
OPERATING ENVIRONMENT
Humidity: 0 to 90% Relative Humidity(Non-condensing)
Operating Temperature: 0? to 40?
Storage Temperature: -15? to 50?
Features
Simulated sinewave inverter
Wide input voltage range
24VDC available
Overload and short circuit protection
LCD display for comprehensive information
Optional solar charger
2400VA INVERTER NO BATTERY
