Barcode Scanner

CShop.co.za | Powered by Compuclinic Solutions Barcode Scanner DS6100CB
Regular price R 958.00 incl. VAT

DY BARCODE SCANNER - DS6100CB

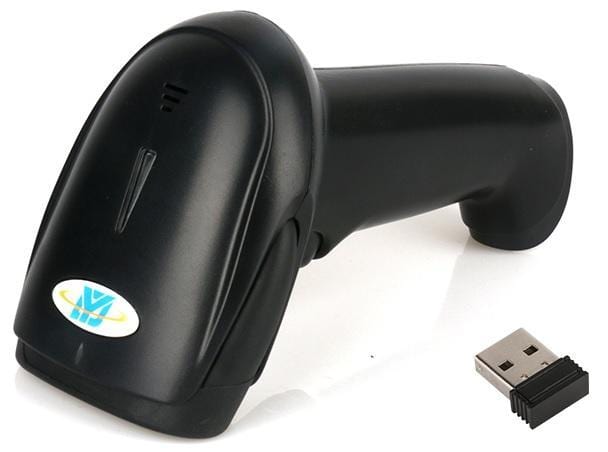

DS6100CB Handheld 2D Barcode scanner

DS6100CB is a high-performance 2D Wireless Bluetooth barcode scanner with leading CMOS image recognition technology

It can easily read the paper, goods, screen and other media barcodes

Widely used in manufacturing, warehouse, logistics, health care, retail chain

Mobile payment, express delivery, inventory management, food traceability, asset Inventory, etc

Features

Ergonomic design, comfortable using

Read all mainstream 1D 2D barcodes in the market easily. (4mil)

Interface: USB, wireless 2.4G, Bluetooth

Dual mode: wired, wireless, Ultra-low power consumption

Transmission distance 100m, intelligent automatic connection when it’s  beyond range, not manual setting

Widely used in supermarket, warehouse, mobile payment, chain stores

Application

Supermarket

Warehouse

Mobile Payment

Retail Chain

Courier Health Care

Cable Interface

DS6100CB scanner must be connected with terminals, PC host, POS and Android host etc

Performance

Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)

CPU: 32-bit

Resolution: 640 x 480

Resolution: 4mil/0.1mm(PCS90%,Code 39)

Decoding Speed: 25CM/S

Scan Mode: Manual ,Continuous, Auto sense

Scan angle: Test Conditions:CODE39, 10mil/0.25mm, PCS90%

Roll±360 , Pitch±50, Skew±50

Print Contrast Signal: 25%

Ambient Light: Dark environment, indoor natural light

Wireless Communication Mode: Synchronization , storage

Wireless Transmission Distance: 2.4GHz,100m; Bluetooth,30 m(Open distance)

Storage: 16Mb (over 100,000 barcodes )

Battery Capacity: 2000mAh

Battery Charging Time: About 7 h

Continuous Working Time: =20h

Symbologies: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,

Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,

Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7,etc

2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc

Physical Parameter

Weight: 160g(without cable)

Dimension: L150mm x  W70mm x H95mm

Communication: USB, wireless 2.4G, Bluetooth 4.2

Interface Type: USB

Power Supply: DC 5V@150mA (work)

Environmental

Operating temperature: 0 to 50

Storage  temperature: -20 to 60

Humidity: 5% to 95%(non-condensing)

Drop Height: 1.5m

Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp

High Temp. 60

Low Temp. -20

Transport vibration Test: 10H@125RPM

Accessories List

Cable: USB, connect the scanner to a host device and charging

Receiver: Used to receive and transmit scanner data











2D WIRELESS + BLUETOOTH BARCODE SCANNER

  • Super Quick Delivery.Within 2 to 4 working days
  • Free Remote Setup. Email us for assistance
  • New laptop? Pay EFT &We'll send you a Cool Gift
  • Your Cart over R2,000?Free courier anywhere in SA
  • not entirely happy? return order within 7days
  • need help deciding?WhatsApp us, Bottom Left

DY BARCODE SCANNER - DS6100CB

DS6100CB Handheld 2D Barcode scanner

DS6100CB is a high-performance 2D Wireless Bluetooth barcode scanner with leading CMOS image recognition technology

It can easily read the paper, goods, screen and other media barcodes

Widely used in manufacturing, warehouse, logistics, health care, retail chain

Mobile payment, express delivery, inventory management, food traceability, asset Inventory, etc

Features

Ergonomic design, comfortable using

Read all mainstream 1D 2D barcodes in the market easily. (4mil)

Interface: USB, wireless 2.4G, Bluetooth

Dual mode: wired, wireless, Ultra-low power consumption

Transmission distance 100m, intelligent automatic connection when it’s  beyond range, not manual setting

Widely used in supermarket, warehouse, mobile payment, chain stores

Application

Supermarket

Warehouse

Mobile Payment

Retail Chain

Courier Health Care

Cable Interface

DS6100CB scanner must be connected with terminals, PC host, POS and Android host etc

Performance

Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)

CPU: 32-bit

Resolution: 640 x 480

Resolution: 4mil/0.1mm(PCS90%,Code 39)

Decoding Speed: 25CM/S

Scan Mode: Manual ,Continuous, Auto sense

Scan angle: Test Conditions:CODE39, 10mil/0.25mm, PCS90%

Roll±360 , Pitch±50, Skew±50

Print Contrast Signal: 25%

Ambient Light: Dark environment, indoor natural light

Wireless Communication Mode: Synchronization , storage

Wireless Transmission Distance: 2.4GHz,100m; Bluetooth,30 m(Open distance)

Storage: 16Mb (over 100,000 barcodes )

Battery Capacity: 2000mAh

Battery Charging Time: About 7 h

Continuous Working Time: =20h

Symbologies: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,

Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,

Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7,etc

2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc

Physical Parameter

Weight: 160g(without cable)

Dimension: L150mm x  W70mm x H95mm

Communication: USB, wireless 2.4G, Bluetooth 4.2

Interface Type: USB

Power Supply: DC 5V@150mA (work)

Environmental

Operating temperature: 0 to 50

Storage  temperature: -20 to 60

Humidity: 5% to 95%(non-condensing)

Drop Height: 1.5m

Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp

High Temp. 60

Low Temp. -20

Transport vibration Test: 10H@125RPM

Accessories List

Cable: USB, connect the scanner to a host device and charging

Receiver: Used to receive and transmit scanner data











2D WIRELESS + BLUETOOTH BARCODE SCANNER
