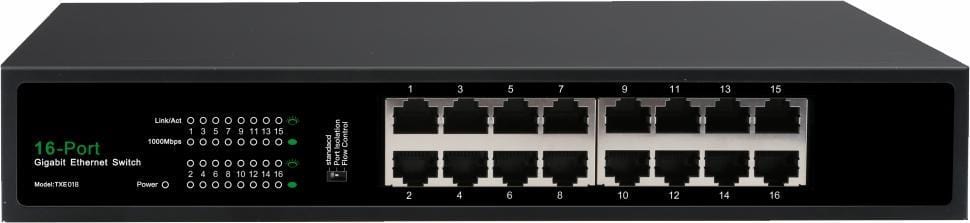

16 PORT GIGABIT SWITCH - TXE018

Standards and Protocols: IEEE 802i, IEEE 802.3u, IEEE 802.3ab

Interface: 16 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

Forwarding Mode: Store-and-Forward

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T:

UTP category 5, 5e or above cable (maximum 100m)

Hardware Features

Power Supply: AC Power: 100-240VAC, 50/60Hz

Features: Port lsolation / Flow Control

LED: Power, 1000Mbps, Link/Act

Fanless Size: Yes

Size: 270 x 181 x 44MM

Shell Material: Iron Shell

Switching Capacity: 32Gbps

Packet Forwarding Rate: 23.8Mpps

Performance

MAC Address Table: 8K

Jumbo Frame:10KB

Maximum Power Consumption: (220V/50Hz) 9.26W

Certifications: CE, FCC, RoHS

Operating Temperature: 0°C- 40°C(32°F-104°F)

Storage Temperature: -40°C-70°C(-40°F-158°F)

Environment

Operating Humidity: 10%-90%RH non- condensing

Storage Humidity: 5%-90%RH non- condensing

Ordering Information: 16-Port Gigabit switch

Overview

The TXE018/TXE168 Gigabit Ethernet Switch represents a high-performance, low-cost, simple, seamless

And standardized upgrade that allows you to transform your existing network and achieve 1000Mbps speeds

All 16/24 ports support auto MDI/MDIX, so there is no need to worry about cable types

Simply plug and play

With the innovative energy-efficient technology

TheTXE018/TXE168canreducepower consumption and the vast majority of its packaging material can be recycled

Making it an eco-friendly solution for your business network

Enhanced Performance

All 16/24Ports are Gigabit RJ-45 Ports,allowing them to support large file transfers and makes them compatible with 10Mbps and 100Mbps Ethernet devices

Since both switches feature a non-blocking switching architecture, the TXE018 and TXE168 forward and filter packets at full wire-speed, achieving maximum throughput

10KBJumboframe significantly improves performance during large file transfers IEEE802.3 x flow control supports

Full Duplex mode and back pressure for Half Duplex mode alleviates traffic congestion to make the TXE018/TXE168 more reliable

This makes the TXE018/TXE168 a perfect choice for upgrading your network to Gigabit speed while protecting your previous investment

 Easy of Use

The automated features of this Gigabit switch make installation hassle-free

 No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables

 Auto -negotiation on each port senses the link speed of network devices (10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

16 PORT GIGABIT SWITCH
